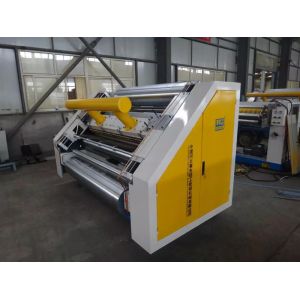

1800 Model B C Flute Single Facer Machine 150m/Min

Name: 1800 Model B C Flute Single Facer Machine 150mMin
Brand: Aodong &LUM
Price: 18000 USD

Wholesale 1800 Model B C Flute Single Facer Machine 150m/Min from china suppliers

Brand Name : Aodong &LUM

Model Number : 1800

Certification : CE,ISO,ISO9001

Place of Origin : China

MOQ : 1

Price : 18000$/set

Payment Terms : L/C, T/T

Supply Ability : 30set/month

Delivery Time : 20

Packaging Details : carton box package

Product name : LUM -B 1800 model B&C Flute 150m/min Single Facer Machine

Voltage : 220V/380V

Condition : new

After-sales service provided : Video technical support

Automatic grade : Semi-Automatic

Packaging material : Wood

Warranty : 2 years

Power : 25kw-50kw

Usage : Making Carton

Function : High Efficiency

Contact Now

LUM -B 1800 model B&C Flute 150m/min Single Facer Machine

corrugated cardboard production line carton box making machine

Parameter

Product name	LUM -B 1800 model B&C Flute 150m/min Single Facer Machine
Voltage	220V/380V
Condition	new
After-sales service provided	Video technical support
Automatic grade	Semi-Automatic
Certification	CE,ISO,ISO9001
Packaging material	Wood
Warranty	2 years
Power	25kw-50kw
Usage	Making Carton
Function	High Efficiency

1800 Model B C Flute Single Facer Machine 150m/Min

Main Features

Paper feeding way is vacuum suction way and perfect flute formation in high speed production.

Available width: 800mm, 1000mm, 1200mm, 1400 mm,1600 mm,1800 mm,2000 mm,2200mm,2500mm.

Flute type: A, C, B, D, E, F, G, UV

corrugated roller: φ280-φ320mm-φ360mm

Drive adopts universal joints, isolate the vibration source which make transmission more stable, reliable.

Driven gearbox adopts immersion oil lubrication, reduce noise, universal joint transmission. Separate structure is independent control and transmission more stable.

The glue coating part adopt automatic circulating glue feeding way (manual or electrical isolation device)

Pneumatic control to adjust the glue feeding and adjust gluing capacity electrically or manually

The gap between glue roller and absorption corrugated roller is precision measurement, electric adjustment and automatic adjustment according to the machine speed.

The glue part can drive alone which easy for maintenance and clean.

The corrugated roller materials 50CrMo alloy, Hardness can reach more than HRC60 which ensures good wear-resistance and long life service.
